» P250 3S/P350 3S

Overview :

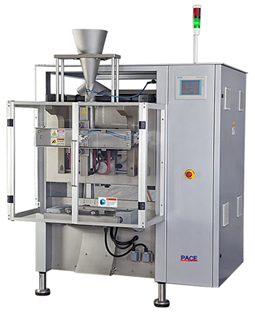

P250 3S Series is medium to high speed intermittent motion vertical form fill seal machine controlled by Motion CPU from Siemens – Germany.

All the functions i.e. Horizontal Sealing, Bag Pulling, Unwinding are controlled by Servo Motors. P250 3S Series can be synchronized with any one of the following fillers to pack any kind of solid products:

  • Multihead Combination Weigher
  • Volumetric Filler
  • Auger Filler
  • Linear Weigh Filler
  • Index Conveyor Belt

Technology Intermittent Motion Intermittent Motion
Bag Width 75-250 mm 125-350 mm
Bag Length 375 mm 600 mm
Power Consumptiom 3.5 KW/HR 4 KW/HR
Air Requirements 2 CFM @ 6 bar 2 CFM @ 6 bar
Maximum film reel width 530 mm 730 mm
Maximum film reel diameter (D) 450 mm 450 mm
Core Diameter 76 mm 76 mm
Maximum Machine Output 100 Bags / min. 100 Bags / min.
Machine Weight (Approximately) 900 kg 1000 kg
Dimensions (Std) L x W x H in mm 1900 x 1350 x 2100 2250 x 1550 x 2250

Snack Food Products
Cereal and Health Foods
Nuts and Dried Fruit
Granulated Products
Pasta and Pulses
Ground Spices
Whole Spices
Tablets & Capsules
Hardware & Plastic Components

Multihead Combination Weigher
Volumetric Filler
Auger Filler
Linear Weigh Filler
Index Conveyor Belt

Pillow Type Centred Sealed

Block Bottom with Gusseted


Optional features
  • Gas Flushing / Gas Purging
  • Gusseting / Gusseting with Block Bottom
  • Round / Euro / D Cut Hole Punch Device
  • Dust extraction system

  • cereals
  • jcoffee
  • confectionery
  • detergent
  • groundspice
  • namkeen
  • nuts
  • pasta
  • wafer
  • wholespice

Controlled by most advanced motion controller from Siemens – Germany with touch screen operating panel.

Machine is designed with PROFIBUS networking. This also helps to connect multiple machines for remote monitoring through SCADA & other MIS products.

Highly rugged mechanical assembly results into zero maintenance of mechanical parts.

Real Sealing Time Feature – This ensures constant sealing time even at different speeds to ensure minimum leakages & wastages.

Servo driven unwinder ensures constant unwinding for intermittent motion machine, which ensures no jerks & film disturbances.

Operator friendly web tracking through touch panel.
